Music Fountain Equipment | HMLY Artificial Mist Fountain for Landscaping, Agriculture & Humidity Control
- 2025-09-10
Artificial mist fountain landscape can provide humidity control in agriculture and animal husbandry , and is an efficient and environmentally friendly form of fountain landscape. Compared with the traditional fog-making method , the HMLY artificial mist fountain system adopts a low-energy, high-efficiency technical solution, which can use low- cost spray equipment to generate a large amount of light, dry artificial fog, and has efficient commercial and practical value. The following is a detailed explanation of the specific composition and characteristics of the system:
Water treatment system:
Water treatment is the basic link of the artificial fog system. Water treatment can ensure both the quality of the fog and the stable operation of the system. Through efficient filters and filter materials, not only can impurities and suspended matter in the water be removed, but also chlorine and water-soluble heavy metals such as lead, mercury, chromium, etc. can be effectively removed, which is essential for protecting the environment and human health. The design of the filter material takes into account the sustainability of long-term use, supports regular flushing, and extends the service life. If the artificial fog system is directly connected to the municipal tap water supply system, a small filtration system can be selected, which can greatly reduce the budget cost.

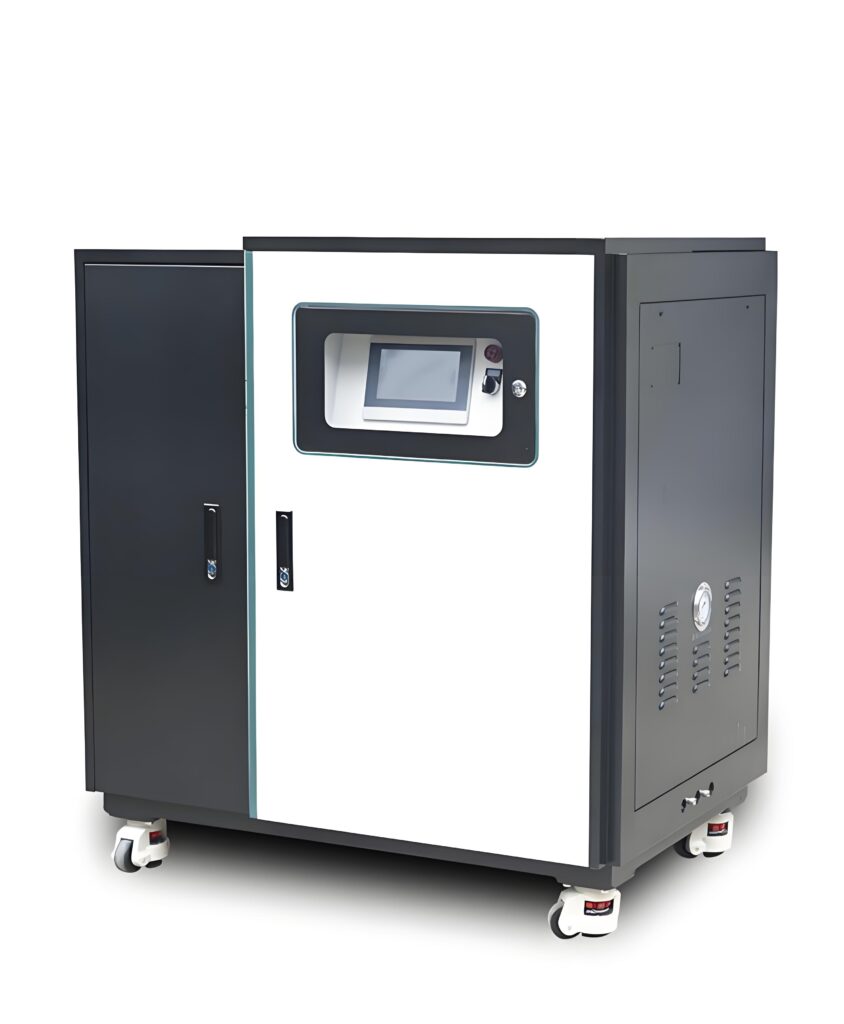

High pressure spray host :
The spray host is the heart of the whole set of equipment . HMLY adopts high-quality Wusen host (host flow = 15L/min; power 3KW -5.5KW design varies ; voltage: 380V; speed 680/min). The HMLY system uses low-noise hosts, with working noise of 55 decibels (+-) 3 decibels, maximum working time of up to 10,000 hours, working environment: 0°—80° relative humidity 80 can guarantee operation, through precise adjustment, the system pressure and flow can be adjusted according to different needs and environmental conditions, the maximum pressure can reach 14Mpa to meet various fogging requirements.
High pressure resistant pipeline:
of the mist spray uses a DN10 high-pressure mist-sen special pipe, the inner wall is purified and can withstand a pressure of 25Mpa . The main pipe material is 304 industrial stainless steel . The installation method is simple, and only ordinary argon arc welding and ferrule connection are required. It is not as complicated as the musical fountain. In the argon arc welding process of stainless steel pipes , it is necessary to inflate the pipe for protection, and then pickle it twice to ensure that the inner wall of the pipe is clean and tidy , so as to ensure the service life of the nozzle .

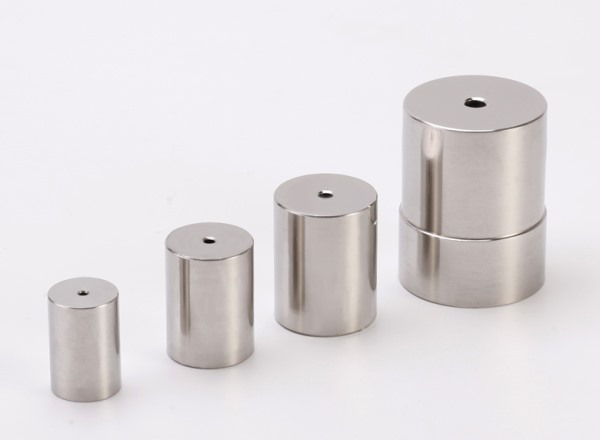

Mist nozzle:
HMLY mist spray nozzle is made of 304 stainless steel . Working principle: high pressure impact type (working pressure 50-150 kg) can reach 1-10 micron natural mist molecules, of which 70% are less than 4 microns, fully atomized, and the impact speed is greater than 90 m/s, breaking through the limit of the original high pressure atomization field, improving the high pressure but fluid atomization technology, energy saving and water saving . The nozzle has a service life of 25,000 hours without wear , and the water outlet of the mist nozzle adopts a ruby crystal with a diameter of 0.2mm. Connection method: Z1/8 anti-loosening thread connection .
Control system:
It adopts PLC control and has multiple protection mechanisms such as high-voltage monitoring, water pressure control, water loss protection, overcurrent (electricity) protection, overheating protection and automatic fault display, ensuring the safe and stable operation of the system. The automated design of time control greatly reduces the workload of operators and improves the convenience and efficiency of use. At the same time, the Wusen control system can automatically reciprocate, and the time can be adjusted all-weather with 16 sets of custom time .
Production of the HMLY artificial fog system fully considers energy efficiency, environmental protection, safety and user experience, making it the preferred solution in the fields of commercial landscaping, agricultural and animal husbandry humidity control, etc.
This innovative artificial mist fountain can not only create a unique and beautiful fog scene for users, but also reduce energy consumption and operating costs while protecting the environment, showing the possibility of combining modern technology with natural beauty.
