Structure Of Graphical Waterfall Fountain Digital Water Curtain


Graphical Waterfall Fountain Digital Water Curtain mainly consists of 6 parts as below:

1. Solenoid Valves & Nozzles
The standard water curtain has got 56 valves every meter, through high-frequency opening and closing of solenoid valves, the water droplets fall continuously or discontinuously to form all sorts of images.

2. RGB LED Lamps
Himalaya high brightness lamps with DMX 512 control, are easy to install and maintain, and have a longer use life with IP68 waterproof grade.

3. Water Pumps
The pump system is to pump water from a river into the large water storage tank, then transfer it to the branch water channels to supply water for nozzles. Himalaya Music Fountain (HMF) has experience in water filtration and organism-removing.

4. Control PCB
Solenoid valves connect to the control system MCU, each board controls 32 pcs of valves to open and close, making the waterfalls display different patterns.

5. Control Cabinet
The pump cable, LED lamp cable, and curtain power cable are connected to the Himalaya Music Fountain (HMF) customized control cabinet, and transfer signals to the computer, people can set various words, images, or logos on the computer to control waterfalls as per the settings. It can also be controlled remotely by mobile phone.

6. Water Tank
A water tank is to store water for the water curtain, providing a clear water source for nozzles and needs to be cleaned regularly.

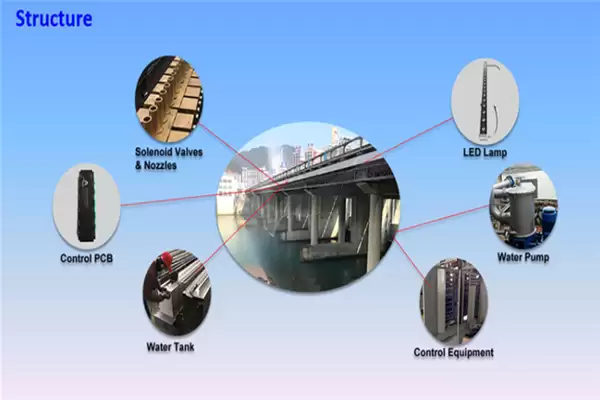

Structure Of Graphical Waterfall
